Outdoor LED Advertising Billboard P10 Ultra Light Weight 27.5KG Per Panel
Quick details:
1, Pixel Pitch: 6.67mm, 8mm, 10mm;
2, SMD2727 LED, high brightness≥8000nits and durable for outdoor use;
3, Greyscale: 16bits;
4, Cabinet size: 960x960mm Aluminum Cabinet
5, Recommended Viewing Distance: 6-16m.
6, Cabinet Material: Die-casting aluminum, 27.5kg per Panel
7, Refresh Rate: 3840Hz
8, Ingress Rate: IP68 Outdoor Standard Connectors; IP68 (FRONT) /IP67(BACK)
9, Quality Certificate:CE, RoHS,FCC, ETL
10, Brightness: ≤10000nit
11, Curve Installation: Yes, Concave and Convex Available
Specification Of Outdoor LED Advertising Screen
| Product Unit Parameters Parameters |
| Mode | S6.67mm | S8mm | S10mm |
| LEDs | 1R1G1B | 1R1G1B | 1R1G1B |
| LED type | SMD2727 | SMD2727 | SMD2727 |
| Pixel pitch | 6.67mm | 8mm | 10mm |
| Unit size | W480×H320mm | W480×H320mm | W480×H320mm |
| Unit resolution | 72×48 dots | 60×40 dots | 48×32 dots |
| Resolution | 22,500dots/㎡ | 12,625dots/㎡ | 10,000dots/㎡ |
| Brightness | ≥6500nit | ≥6500nit | ≥6500nit |
| Weight | 27.5KG/㎡ | 27.5KG/㎡ | 27.5KG/㎡ |
| Max consumption | 500W/㎡ | 500W/㎡ | 500W/㎡ |
| Adv consumption | 260W/㎡ | 230W/㎡ | 235W/㎡ |
| Viewing angle | H160°/V160° | H160°/V160° | H120°/V160° |
| Protection level | IP68 | IP68 | IP68 |
| Thickness | 75mm | 75mm | 75mm |
| Install depth | 150mm | 150mm | 150mm |
| Heat dissipation | Convective heat dissipation | Convective heat dissipation | Convective heat dissipation |
| Wind dissipaion | Level 12 | Level 12 | Level 12 |
| Power supply | Power supply with PFC | Power supply with PFC | Power supply with PFC |
| Installation | Fast install | Fast install | Fast install |
| Fire safety | 10S/unit | 10S/unit | 10S/unit |
| Fire resistance | Full VO grade | Full VO grade | Full VO grade |
| Service | Front,Back | Front,Back | Front,Back |
| Control mode | steady state | steady state | steady state |
| Color temperature | 3200-9300K | 3200-9300K | 3200-9300K |
| Refresh rate | 60Hz | 60Hz | 60Hz |
| Working temperature | -40℃ to 70℃ | -40℃ to 70℃ | -40℃ to 70℃ |
| Storage temperature | -55℃ to 120℃ | -55℃ to 120℃ | -55℃ to 120℃ |
| Life time | ≥100,000 hours | ≥100,000 hours | ≥100,000 hours |
| Input voltage | AC110-220V | AC110-220V | AC110-220V |
| Grey grade | 16bit | 16bit | 16bit |
| Seismic capability | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |

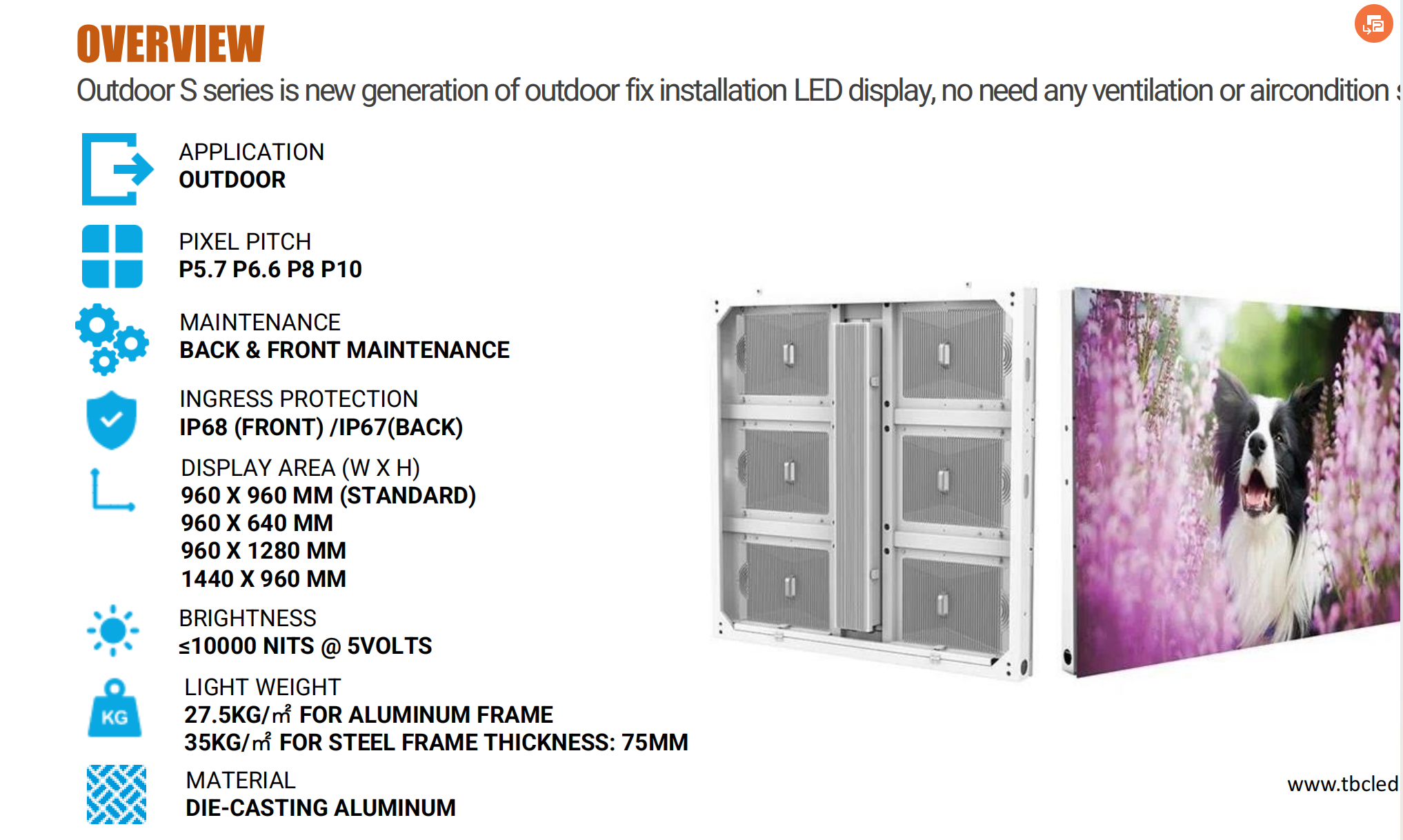

TBC LED S Series outdoor led advertising billboards include P10mm, P8mm, P6.67mm. Features are:

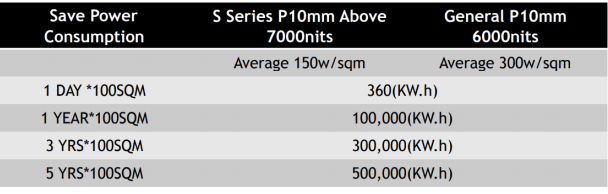

1. Ultra low heat and power consumption, saving and excellent visual experience;
2. The cabinet is light and stable. It weighs only 27.5KG.
3. Dustproof and waterproof grade: IP68.
The aluminum chassis module adopts a fully enclosed package design, equipped with a three-in-one waterproof plug, and the lamp base adopts a double-liquid glue filling technology to achieve the highest level of dustproof and waterproof: IP68. And that flame retardance is strong. Aluminum material is not easy to catch fire, resistant to high temperature and fast to dissipate heat.

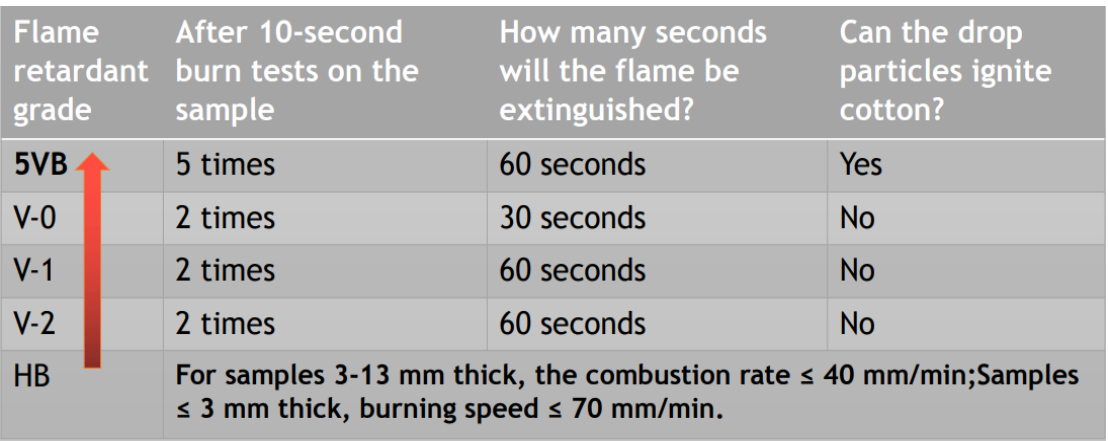

The mask is made of VO standard flame-retardant material, and it will not spontaneously combust when working in high-temperature environment.
4. High Brightness Outdoor LED Screen.
10000 NITS is the highest brightness available on the LED display market. Your led display will stay bright for a longer period of time.
Our Services
1. 10 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. Customizable product upon request
FAQ
Q1. How does the service work?
A: We have experienced Engineers who worked in the industry for 15 years and able to communicate with fluent English. They can remotely provide technical support via video conference or teamviewer or go to the site for the guidance.
Q2. What installation options do we have?
A: Wall mounting with metal structures.
Q3. Do you have any MOQ limit for led screen order?
A: Low MOQ, modules or complete screen order are all welcome.
Q4. What's the shipping method?
A: Air freight, sea and train transport according to different region.
Q5. What's the payment method?
A: Mostly we accpet telegraphic transfer, 50% before production and 50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different product. Free Repair or Exchange of Defective Parts with One way Shipping
