HD Outdoor Stage Rental LED Display Magnetic Front Service Stage Event Video Wall P3.91

Brand Name : TBC

Model Number : D391-A

Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC

Place of Origin : China

MOQ : 10sqm

Price : Negotiable

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10,000sqm/month

Delivery Time : 15days

Packaging Details : Flight Case

Pixel : 3.91mm

Color : Full color

LEDs : SMD1921

Service : Front

Module : Magnetic Design

Panel Size : 500x500mm

Contact Now

P3.91 HD Outdoor Rental LED Display Magnetic Front Service Stage Event Video Wall

Quick Details:

1, Pixel Pitch: 3.91mm.

2, High resoltuion: 65536dots/m2.

3, SMD LEDs, Wide viewing angle: 160°/ 160°.

4, Magnetic front service panel.

Description:

TBC 3.91mm outdoor rental led displays are very hot-selling with its high definition, high color uniformity and clear image, brings you a vivid audio visual effect.

Features:
1, Super-light weight and Ultra-thin: each panel only 9kg, 80mm, can be lifted with one hand.
2, Magnetic front service module design, no screws on the modules, fast to assemble and disassemble.
3, High refresh rate 1920Hz, no strips for camera shooting, perfect event performance.

4, IP65 grade for high performance waterproof and dustproof capability.

Parameters:

Parameter	Unit	Value
Brightness	nits	4200
Color temperature	deg.k	3200 ~ 9300
Viewing angle - Horizontal	deg.	160(+80/-80)
Viewing angle - Vertical	deg.	160(+80/-80)
Cabinet weight	kg	9
Cabinet width	mm	500
Cabinet height	mm	500
Cabinet depth	mm	80
Cabinet area	sq. m.	0.25
Cabinet material		Aluminum
Aspect ratio		1:1
Ingress protection (Front/Rear)	IP	IP65/IP43
Operating temperature range	deg. C	- 20 to 50
Operating humidity range	HR	10％ to 90％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	3.91
Pixel matrix per cabinet		128x128
Pixels per cabinet		16384
Lines per meter		256
Pixels per sq. meter		65536
LEDs per sq. meter		65536
Recommended minimum viewing distance	m	4
Colours		281trillion
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Digital processing	bit	16
Frame rate	Hertz	60
Display refresh rate	Hertz	1440
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Input power (max/avg)	Watts per sq.m	800/280
MTBF	Hours	≥10000
Lifetime (50%Brightness)	Hours	≥100000
Module brightness uniformity		＜5％
Blind spot rate		＜0.0001
Earth leakage current	mA	＜2
Red wavelength	nm	623
Green wavelength	nm	525
Blue wavelength	nm	470
Panel input format (with video processor)		VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection		CAT6 cable/Fiber
Operating system		Windows(XP/Vista/7/8/10)
Control distance		Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Application:

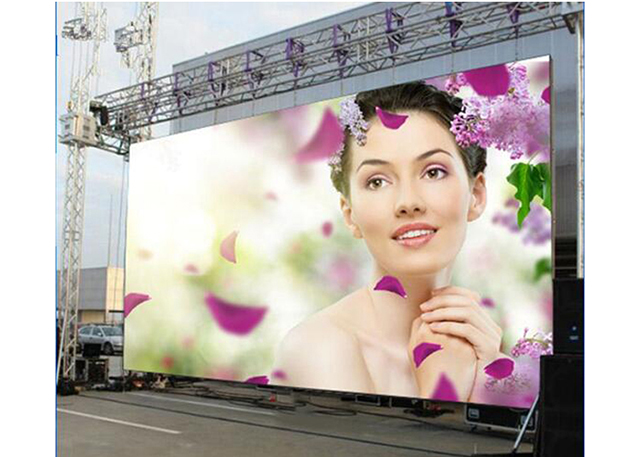

TBC Stage Rental LED Displays are usually used for stage background of live shows, advertising and broadcasting in operas, cinemas, concert hall, church, bars and so on.
